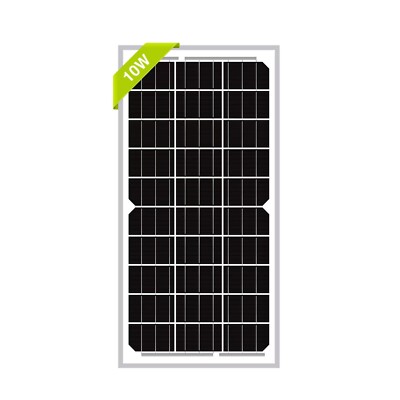

10W 12V MONOCRYSTALLINE SOLAR PANEL

Newpowa's 10W 12V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, and many other small off-grid applications.
Key Features

10W/12V monocrystalline solar panel

High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)

Nominal 12V DC for standard output

Heavy-duty anodized frame with pre-drilled holes for mounting

Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)

High-transparent, low iron tempered glass

Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan

Pre-attached 3ft wire with bare ends

Product dimensions: 390 x 195 x 18mm (15.35 x 7.68 x 0.71 in)

Compatible mount brackets (

sold separately

): NPB-UZ, NPB-35P

Product Code NPA10S-12I Maximum power (Pmax) 10W Voltage at Pmax (Vmp) 17.37V Current at Pmax (Imp) 0.69A Open-circuit voltage (Voc) 20.04V Short-circuit current (Isc) 0.73A Temperature coefficient of Voc -(80±10)mV/°C Temperature coefficient of Isc (0.065±0.015)%/ °C Temperature coefficient of power -(0.5±0.05)%/ °C NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C Operating temperature -40°C to 85°C Maximum system voltage 1000V DC Power tolerance ± 3% Maximum Series Fuse Rating 5A
